Floorplan - 2009 Northwood Arctic Fox 24-5N
-
-
-
-
+6-
26ft long
-
7,120 lbs
-
Sleeps 6
-
1 slides
-
Rear KitchenFront Bedroom

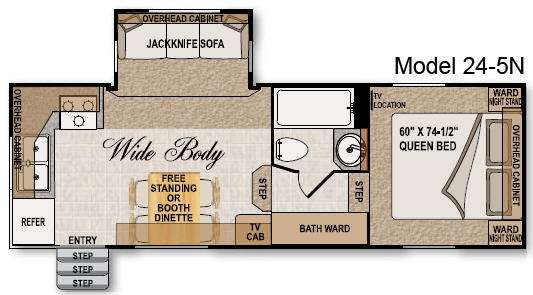

24-5N Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 26 ft 2 in | Ext Width | 8 ft 6 in |
| Ext Height | 11 ft 4 in | Hitch Weight | 1180 lbs |
| GVWR | 10000 lbs | Dry Weight | 7120 lbs |
| Cargo Capacity | 2880 lbs | Fresh Water Capacity | 56 gals |
| Grey Water Capacity | 70 gals | Black Water Capacity | 35 gals |
| Tire Size | ST225/75R15 | Furnace BTU | 35000 btu |
| VIN | 4N15N242780133530 |
Description
Single Slide Arctic Fox Fifth Wheel by Northwood Mfg. w/Rear Kitchen Including 3 Burner Range, Overhead Cabinets, Dbl. Sink, Refrigerator & Free Standing or Booth Dinette, TV Cabinet, Jackknife Sofa Slideout, Step Up to Bed & Bath, Bath Wardrobe, Tub/Shower, Toilet & Sink, Queen Bed, Wardrobes w/Nightstands Below, Overhead Cabinet & More!
Features
- All Aluminum Superstructure (Silver Fox Edition)
- Fully Welded Frame Assembly
- Hot Urethane Bonded Lamination Process
- Hardwall with Exterior Graphics
- Rigid Block Foam Insulation Throughout
- Laminated Walls, Front, Rear, Bulkhead & Floor
- Tapered Rigid Block Foam Laminated Roof
- Thick One-Piece Vinyl Roof
- 100% Walk On Roof Structure (end to end)
- Radius Corner Windows w/Interior Clamp Ring System
- Tinted Safety Glass
- Recessed Automotive Tail Lights w/Backup Lights
- Face Frame Construction-All Cabinets
- Extended Cab
- Smoke, LPG Leak, CO Detectors
- Fire Extinguisher
- 12V Interior Lighting w/Interior Switch
- AC/DC Converter-Charge Wizard Battery Mgmt. System
- 12-Volt Interior Lighting System
- GFI Circuit Protection - GFI Patio Receptacle
- Pre-Wired (A/C, TV Antenna & Fan Vent)
- Manual Camper Jacks - Pre-Wired for Electric
- 4-Way Remote Electric Camper Jacks
- Fluorescent Lighting
- Wired for Cable TV
- Phone Jack /Data Port
- Solar Panel Ready
- Satellite Ready
- 12 Volt Kill Switch
- Sliding Battery Rack
- Generator Ready All Models (except 811 & 860 Long Box)
- Dual 30 Lb. LPG Bottles
- Auto Change-Over Regulator
- LPG Quick Connect
- 20M BTU Auto Ignition Furnace
- Residential Style Climate Control Thermostat
- One-Piece Fiberglass Shower Enclosure (Wet Bath)
- Bath Skylight, Bath Power Vent
- Marine Toilet
- RV Systems Monitor Panel (Tanks & Batteries)
- High Rise Galley Faucet
- Range Hood w/Light & Exhaust Fan
- Large Galley Sink-Cutting Board/Sink Cover
- Residential Style Self-Edged Counter tops
- Microwave Oven w/Carousel
- Galley Skylight w/Shade
- 12" Lexan Range Back Splash
- Semi-Automatic Winterization System
- Water Heater Bypass Valve
- Freeze Resistant 1/2" Water Lines
- DSI Gas Water Heater w/Insulated Porcelain Lined Tank
- Privacy Room Divider
- Ozite Ceiling Marine Carpet Throughout
- Commercial Grade Linoleum Flooring
- Raised Oak Panel Deluxe Doors Throughout
- Solid Wood Drawers w/Roller Guides
- Radius Finished Edges On Overhead Cabinets
- Adjustable Reading Lights in Bedroom
- Kenwood AM/FM Stereo w/CD Player
- Deluxe Queen Mattress w/Bedspread
- 2 Way/3 Speed Northern Breeze Fan Vent in Bedroom
- Night Shades in All Windows
- Rear Back Up Window
- Heavy Duty Camper Tie Downs
- Extra Wide Radius Rear Entry Door (24" in 811) w/Extra Large Windows (Opaque Upper & Clear Lower Back-Up) w/Flush Mount Lock and Dead Bolt and Screen Door w/Kick Panel
- Large J-Rail Rain Gutters
- Clearance Lights
- 110V GFI Outlet
- Deluxe Bumper
- Rear Awning
- TV Antenna
- Exterior Marine Speakers
- Marine Style Exterior Shower
- Roof Rack and Ladder
- Heated Holding Tanks
- 1" Radius Corner, Insulated Luggage Doors w/Rubber Seals, Metal Locks, Thumb Latches & Pulls
